Chef's special: Proxmox, SDS (linstor) & Cluster
Cooking lessons 101: Proxmox, LINSTOR, and 10G cards
Homelab-ing should be fun, right? Right.
Until you decided to go down the path of what I call : the not-so-home-but-more-like-prod-lab-ing
Well, I recently had the joy (read: chaos) of upgrading from a single Proxmox node to a beautiful, powerful and shiny 3-node cluster. Sounds great on paper until it's 3 AM and i'm wondering why the third node won't do the exact same thing as the first two.
So today, let’s unpack the mess together. We’ll go over:
- What kind of hardware these Proxmox nodes are running on
- Why and how I went down the SDS/distributed-storage rabbit hole
- How I actually set up the cluster
- Benchmarks (because we like numbers go brrrrr... )
Current node, peony :
Before migrating, i had a single proxmox node that we'll call pve01 or peony, both works.
This beauty has been running on :
- OS : Proxmox (because fuck broadcom)
- CPU : AMD Ryzen 7 5700G (8c, 16t | 3.8 GHz / 4.6 GHz)
- COOLER : Noctua NH-D12L
- MOBO :TUF GAMING X570-PLUS
- RAM : 4x32 DDR4 3200MHz CL16 Corsair Vengeance
- NIC : MELLANOX X-3-10GbE
- OS SSD : 2x Samsung SSD 870 EVO 500GB
- VM SSD : 2x Samsung SSD 980 PRO 2TB
- PSU : Pure Power 12 M 550 W
- CASE : Silverstone SST-RM42-502
I chose this build for a few reasons : I needed 2 nvme Gen4 ports to be able to run a zfs-pool with the 980 pro at full speed. And I also wanted to have an iGPU because I had no needs for an entire GPU and it's power consumption. I also chose an old Mellanox X-3 for an LACP bond to fully use my USW-Aggregation.
The two newborn nodes, petunia and dahlia :
Those two nodes, pve02 and pve03 aka petunia and dahlia have the same hardware :
- OS : Proxmox (because once again, fuck broadcom)
- CPU : AMD Ryzen 5 8600G (6c, 12t | 4.3 GHz / 5.0 GHz)
- COOLER : Noctua NH-L12S
- MOBO : ASUS TUF GAMING A620M-PLUS
- RAM : 2x24 DDR5 5600MHz CL46 CRUCIAL PRO
- NIC : INTEL X710-DA2
- OS SSD : 2x Dell Intel S3700 200GB
- VM SSD : 2x Samsung SSD 990 PRO 2TB
- PSU : Pure Power 12 M 550 W
- CASE : RM23-502 Mini
And I added to all three nodes a dual 1G NIC for a ring-network dedicated to the proxmox cluster & the corosync service.
As for what a ring-network is, it's a basic network topology where each nodes is connected to two other nodes, without using a switch.
So it should look like this :
pve01 :
pve01.nic1 <=> pve02.nic1
pve01.nic2 <=> pve03.nic1pve02 :
pve02.nic1 <=> pve01.nic1
pve02.nic2 <=> pve03.nic2pve03 :
pve03.nic1 <=> pve01.nic1
pve03.nic2 <=> pve02.nic2The SDS rabbit-hole :
As this homelab is changing, updating and upgrading into more like a production-ready setup, I decided to go down the HA (High Availability) path since I had 3 nodes now.
For simple HA in a Hypervisor-OS cluster (let it be Proxmox, HyperV, ESXI, OpenNebula, etc) you'll need one thing :
- at least 3 nodes for a quorum (minimum number of cluster members that have to agree the cluster is or not healthy. So there's a vote, and 3 is a minimum to achieve majority)
For a more efficient HA in a Hypervisor-OS cluster (let it be Proxmox, HyperV, ESXI, OpenNebula, etc) you'll need two things :
- at least 3 nodes for a quorum (minimum number of cluster members that have to agree the cluster is or not healthy. So there's a vote, and 3 is a minimum to achieve majority)
- distributed storage : each volume that will be created (volume = VM/CT disk) will be at least replicated on another node. So that migrating from pve02 to pve03 will only migrate the RAM & .cfg file since the disk is already present.
In PVE (Proxmox Virtual Environnement), there's a few ways to achieve this (there may be more, I only know and used those):
- ZFS replication
- CephFS
- iSCSI
- Linstor
ZFS Replication :
If you are planning to use ZFS for your storage pool, ZFS replication may be a solution. It'll replicate the snapshot of the disk every x period of time (could be every minute, every 15 minutes; whatsoever). So if HA (or yourself) decided to migrate the disk, you'll only lose the data that hasn't been synced by the ZFS replication. This works like a charm, without a lot of configuration, but it wasn't what I wanted. I wanted something more... sophisticated, I'm an homelabber after all, I have no need but greed.
[pve01] [pve02]
┌──────────┐ ┌─────────────┐
│ VM Disk │── Snapshot ---> │ VM Disk │
│ Pool A │ │ Pool B │
└──────────┘ └─────────────┘
↑ ↑
Writes Replicated every X minCephFS :
CephFS is actually full integrated within the PVE ecosystem and could have been a solution. It uses OSD and CephMON (Monitor) that are lightweight nodes that keep track of the cluster's health, metadata and where the OSD are so that it can recover automatically if a node fails. The hardware requirements are quite heavy :
- 10G NICs minimum where even 40Gbps links can be saturated by NVMEs (Gen4 nvme goes up to 7GBps, roughly 40 to 60Gbps).
- 2 NIC, since they will be used as what they call a :
- "Private / Cluster Network" : used for the public storage communication (like VMs, Proxmox, LXC)
- "Public Network" : used for the OSD (Object Storage Daemon) replication and heartbeat traffic.
- More and fast disks to be used as WAL (Write Ahead Logs), typically NVME as WAL and stores it on SATA SSD / HDD.
This could have been a way for me, easy to setup. But the hardware requirements were too heavy for me and since I already had a 10G switch, I feared it would be very slow and be a nightmare to optimize it.
+----------------+
| MONITOR |
| (Ceph MON) |
+----------------+
▲
┌─────────────┼─────────────┐
▼ ▼ ▼
+---------+ +---------+ +---------+
| OSD 1 | | OSD 2 | | OSD 3 |
| NVMe+HDD| | NVMe+HDD| | NVMe+HDD|
+---------+ +---------+ +---------+
▲ ▲ ▲
│ │ │
└─────────────┴─────────────┘
│
Clients (PVE Nodes)
iSCSI (Internet Small Computer System Iinterface) :
In easy term, let's say I have a NAS with disks. I create an iSCSI share, which will be mounted to each PVE nodes of the cluster. I can now create VM/LXC on this storage, and since it'll be shared across the cluster, I could migrate it easily.
For the PVE nodes, it would look like they each have the same big disk mounted.
+--------------------+
| NAS |
| iSCSI Target |
+--------------------+
│ │ │
│ │ │
+-----+ | +-----+
| | |
[pve01] [pve02] [pve03]
│ │ │
└─────────────┴─────────────┘
Shared Disk
(appears as the same big local disk)The chosen one : Linstor :
Linstor is kinda a mix of CephFS and iSCSI. It's an open-source storage management solution for block storage (like iSCSI do). It works off 3 Core Components :
- the Linstor Controller
- brain of the shared storage
- keeps track of all the storage ressources, nodes and replica
- the Linstor Satellite
- each node is considered as a Satellite
- manage the local disks and execute the replication commands
- and obviously, the Storage Pools
- can be ZFS, LVM & LVM-thin
- managed by Linstor
- used to store the VMs data
+------------------+
|LINSTOR Controller|
+------------------+
│
┌────────────────┴─────────────────┐
▼ ▼
+-------+ +-------+
| Satel | | Satel |
| Disk1 | | Node2 |
| Disk1 | <-- Rep --> | Disk1 |
+-------+ +-------+
│ │
[pve01] [pve02]
│ │
└── Volumes shared across nodes. ──┘Wait, this could work, this could be it. This could be challenging and fun. So I decided to spin up a few VMs, install PVE on it and tried thing. After a few days of trial and error, I finally obtained a virtual cluster with a distributed storage across it, working like a charm !
How I actually set up the cluster :
As I said before, I used a ring network and Distributed Storage for a better HA.
The ring network :
First thing first, how to setup the ring-network :
Connect each nodes to each other. You'll need 3 networks (pve01 to pve02, pve01 to pve03 and pve02 to pve03), I went with three /29, which gives me plenty of room with 6 IP Adresses.
- network pve01 to pve02 : 10.10.0.1/29 and 10.10.0.2/29
- network pve01 to pve03 : 10.10.3.1/29 and 10.10.3.2/29
- network pve02 to pve03 : 10.10.2.1/29 and 10.10.2.2/29
You may be wondering, where the hell is the 10.10.1.1/29 and why did he chose the 10.10.3.1/29 network. Great answer.
Somehow, against all logic, it just wouldn't work.
Trust me. I was there, staring at my computer screen until 3 AM, wondering why the hell 10.10.1.1/29 & 10.10.1.2/29 were not working. Until I simply tried the 10.10.3.1/29 and it worked top notch, so I went with it. Goodbye my 10.10.1.1/29 and 10.10.1.2/29, I truly loved you (f*ck you I hate you).
You'll also need to enable routing on each of your proxmox nodes so that pve01 can talk with pve03 via the pve02 link. Quite a headache isn't it ?
On pve01 :
interlope@pivoine:~$ ip -br -c a | grep 10.10
enp7s0 UP 10.10.0.1/29 fe80::1efd:8ff:fe7a:e2b8/64
enp8s0 UP 10.10.3.1/29 fe80::1efd:8ff:fe7a:e08c/64interlope@pivoine:~$ cat /etc/network/interfaces | grep route
post-up ip route add 10.10.2.0/29 via 10.10.0.2 dev enp7s0root@pivoine:/home/interlope# traceroute 10.10.2.2
traceroute to 10.10.2.2 (10.10.2.2), 30 hops max, 60 byte packets
1 10.10.0.2 (10.10.0.2) 0.095 ms 0.076 ms 0.057 ms
2 10.10.2.2 (10.10.2.2) 0.120 ms 0.105 ms 0.119 msIt can join the pve03 while passing by the pve02 node.
On pve02 :
interlope@petunia:~$ ip -br -c a | grep 10.10
enp8s0 UP 10.10.0.2/29 fe80::1efd:8ff:fe7a:e239/64
enp9s0 UP 10.10.2.1/29 fe80::1efd:8ff:fe7a:e23a/64interlope@petunia:~$ cat /etc/network/interfaces | grep route
post-up ip route add 10.10.3.0/29 via 10.10.2.2 dev enp9s0root@petunia:/home/interlope# traceroute 10.10.3.1
traceroute to 10.10.3.1 (10.10.3.1), 30 hops max, 60 byte packets
1 10.10.2.2 (10.10.2.2) 0.091 ms 0.063 ms 0.088 ms
2 10.10.3.1 (10.10.3.1) 0.140 ms 0.130 ms 0.121 msIt can join the pve01 while passing by the pve03 node.
On pve03 :
interlope@dalia:~$ ip -br -c a | grep 10.10
enp8s0 UP 10.10.3.2/29 fe80::1efd:8ff:fe7a:e497/64
enp9s0 UP 10.10.2.2/29 fe80::2e0:4cff:fe68:f52/64interlope@dalia:~$ cat /etc/network/interfaces | grep route
post-up ip route add 10.10.0.0/29 via 10.10.3.1 dev enp8s0root@dalia:/home/interlope# traceroute 10.10.0.2
traceroute to 10.10.0.2 (10.10.0.2), 30 hops max, 60 byte packets
1 10.10.3.1 (10.10.3.1) 0.106 ms * *
2 10.10.0.2 (10.10.0.2) 0.135 ms 0.119 ms 0.152 msIt can join the pve02 while passing by the pve01 node.
Now I can simply create my cluster homegarden on pve01, add the two NIC links and join it with pve02 and pve03, wonderful.
As for the SDS, that's a whole other ball game.
Linstor :
This tutorial will be written this way : each step will tell you on which node to execute the commands :
- Installing linstor, on all nodes :
wget -O /tmp/linbit-keyring.deb https://packages.linbit.com/public/linbit-keyring.deb
dpkg -i /tmp/linbit-keyring.deb
PVERS=9 && echo "deb [signed-by=/etc/apt/trusted.gpg.d/linbit-keyring.gpg] http://packages.linbit.com/public/ proxmox-$PVERS drbd-9" > /etc/apt/sources.list.d/linbit.list
apt update
apt -y install drbd-dkms drbd-utils drbd-reactor proxmox-default-headers linstor-proxmox linstor-controller linstor-satellite linstor-client linstor-proxmox linstor-gui vim- Loading the
drdbkernel module into memory first, and simply enable it at boot, on all nodes :
modprobe drbd
echo "drbd" >> /etc/modules
reboot- Enable the linstor-controller, on node 1 :
systemctl enable --now linstor-controller- Configure the linstor-client, on all nodes :
cat <<EOF > /etc/linstor/linstor-client.conf
[global]
controllers=ipnode1,ipnode2,ipnode3
EOF- Edit the linstor-satellite, on all nodes :
systemctl edit linstor-satellite.service
[Service]
Type=notify
TimeoutStartSec=infinity
Environment=LS_KEEP_RES=linstor_db- Create the linstor cluster, on node 1 :
linstor node create hostnamenode01 ipnode1
linstor node create hostnamenode02 ipnode2
linstor node create hostnamenode03 ipnode3
linstor node set-property hostnamenode01 DrbdOptions/AutoEvictAllowEviction false
linstor node set-property hostnamenode02 DrbdOptions/AutoEvictAllowEviction false
linstor node set-property hostnamenode03 DrbdOptions/AutoEvictAllowEviction falseNote : the DrbdOptions/AutoEvictAllowEviction false is to avoid your nodes to be auto-removed from the linstor cluster during temporary issues and to also avoid split-brain scenarios (data still being written on a node that has lost communication with the cluster), creating data corruption and divergent data.
Which should looks like this :
interlope@pivoine:~$ linstor node list
╭──────────────────────────────────────────────────────────╮
┊ Node ┊ NodeType ┊ Addresses ┊ State ┊
╞══════════════════════════════════════════════════════════╡
┊ dalia ┊ SATELLITE ┊ 10.100.4.103:3366 (PLAIN) ┊ Online ┊
┊ petunia ┊ SATELLITE ┊ 10.100.4.102:3366 (PLAIN) ┊ Online ┊
┊ pivoine ┊ SATELLITE ┊ 10.100.4.101:3366 (PLAIN) ┊ Online ┊
╰──────────────────────────────────────────────────────────╯I decided to go down the path of a ZFS pool on each node with raid1 (mirroring) between the two nvmes, do what suits yourself and your cluster :
zpool create pool-nvme-01 mirror /dev/nvme0n1 /dev/nvme1n1- Create the storage-pool for the zfs-share, on node 1 :
linstor storage-pool create zfsthin pve01 sto-pool_zfs-01 pool-nvme-01
linstor storage-pool create zfsthin pve02 sto-pool_zfs-01 pool-nvme-01
linstor storage-pool create zfsthin pve03 sto-pool_zfs-01 pool-nvme-01- Create the resource-group to use the storage-pool we juste created, on node 1 :
linstor resource-group create res-gr_pve --storage-pool sto-pool_zfs-01 --place-count 2 --diskless-on-remaining true- Create another resource-group that will be used to achieve HA-controller for Linstor, in case the controller node goes down, another node can become the controller, on node 1 :
linstor resource-group create --storage-pool sto-pool_zfs-01 --place-count 3 --diskless-on-remaining true linstor-db-grp
linstor resource-group drbd-options --auto-promote=no --quorum=majority --on-suspended-primary-outdated=force-secondary --on-no-quorum=io-error --on-no-data-accessible=io-error linstor-db-grp
linstor resource-group spawn-resources linstor-db-grp linstor_db 200M- Disable the linstor-controller service with
--nowsince he's currently active, on node 1 :
systemctl disable --now linstor-controller- Disable the linstor-controller service, on node 2 and node 3 :
systemctl disable linstor-controller- Create a service to mount automatically the linstor database volume, on all nodes :
This is needed to achieve HA-controller since normally, the linstor-controller stores all the metadata storage on a local disk. But if another node becomes the linstor-controller instead, it'll need to have those metadata, so we share it via a resource-group we created earlier.
cat > /etc/systemd/system/var-lib-linstor.mount << 'EOF'
[Unit]
Description=Filesystem for the LINSTOR controller
[Mount]
What=/dev/drbd/by-res/linstor_db/0
Where=/var/lib/linstor
[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload- Initialize the LINSTOR controller database on replicated DRBD storage by backing up existing data, creating an immutable mount point, formatting the DRBD volume, and migrating the database, on node 1 :
mv /var/lib/linstor{,.orig}
mkdir /var/lib/linstor
chattr +i /var/lib/linstor
drbdadm primary linstor_db
mkfs.ext4 /dev/drbd/by-res/linstor_db/0
systemctl start var-lib-linstor.mount
cp -r /var/lib/linstor.orig/* /var/lib/linstor
systemctl start linstor-controller- To be sure the lisntor-controller service is really down on the others two nodes (since it'll be now managed by drdb-reactor), on node 2 and node 3 :
systemctl stop linstor-controller
chattr +i /var/lib/linstor- Create the drdb-reactor linstor services, on all nodes :
This will allow the drdb-reactor to chose who's the linstor-controller.
cat <<EOF > /etc/drbd-reactor.d/linstor_db.toml
[[promoter]]
[promoter.resources.linstor_db]
start = ["var-lib-linstor.mount", "linstor-controller.service"]
EOFsystemctl restart drbd-reactor
systemctl enable drbd-reactor
systemctl restart linstor-satelliteCheck the logs with drbd-reactorctl status linstor_db and systemctl status drbd-reactor, it should look like this :
root@pivoine:/home/interlope# drbd-reactorctl status linstor_db
/etc/drbd-reactor.d/linstor_db.toml:
Promoter: Currently active on node 'petunia'
○ drbd-services@linstor_db.target
○ ├─ drbd-promote@linstor_db.service
○ ├─ var-lib-linstor.mount
○ └─ linstor-controller.service pve02 aka petunia is currently the linstor-controller.
Now, i've tuned this a little bit since i've created a VIP (Virtual IP) via keepalived to access :
- the proxmox cluster via an url, which doesn't change
- the linstor-controller GUI(who can change), via the same IP
- the linstor-controller for its clients (proxmox cluster, and the two other nodes)
But how does this works ? Each node has a keepalived configuration that basically says :
If you have the linstor-controller running, TAKE THAT IP and don't asks questions
We saw earlier that pve02 was the current controller. If we look at his IP adresses, the VIP should be there :
interlope@petunia:~$ ip -br -c a | grep .100
enp1s0f1np1 UP 10.100.4.102/24 10.100.4.100/24 fe80::3efd:feff:fee5:5535/64
vmbr1.3@vmbr1 UP 10.100.3.102/24 10.100.3.100/24 fe80::3efd:feff:fee5:5534/64We see that on the linstor NIC and the proxmox NIC, it got a second ip, the .100, which is shared between all three nodes.
This is also needed for our linstor-controller-HA goal.
- Install keepalived, on all nodes :
apt install keepalived -y- Create the scripts that tells if the node has the linstor-controller service up and running, on all nodes :
cat <<'EOF' > /usr/local/bin/check_linstor.sh
#!/bin/bash
# Checks if LINSTOR controller service is active
if systemctl is-active --quiet linstor-controller.service; then
exit 0
else
exit 1
fi
EOF
chmod +x /usr/local/bin/check_linstor.sh- Create the keepalived conf file that will check the result of the script and give/or not the VIP, on all nodes :
cat <<EOF > /etc/keepalived/keepalived.conf
vrrp_script chk_linstor {
script "/usr/local/bin/check_linstor.sh"
interval 2
timeout 2
fall 2
rise 1
}
vrrp_instance VI_1 {
state BACKUP
interface vmbr0
virtual_router_id 51
priority 150
advert_int 1
authentication {
auth_type PASS
auth_pass mySecret123
}
virtual_ipaddress {
10.100.4.100/24 dev ens19 # LINSTOR NIC
10.100.3.100/24 dev vmbr1.3 #PROXMOX PUBLIC NIC
}
track_script {
chk_linstor
}
}
EOF
systemctl enable keepalived
systemctl start keepalivedOn the node who has the linstor-controller service up and running, once you've started the keepalived service, you should see a secondary ip on it. Now that the linstor VIP is configured, that the linstor-controller-HA is working, let's use our storage !
-
Enable on linstor-client conf, the new VIP instead of our 3 nodes IP Adresses :
cat <<EOF > /etc/linstor/linstor-client.conf [global] controllers=VIPADRESS EOF -
Enable on proxmox the lisntor-storage, on node 1:
drbd: linstor
content images,rootdir
controller VIPADRESS
resourcegroup res-gr_pve
systemctl restart pve-cluster pvedaemon pvestatd pveproxy pve-ha-lrmHow I use the VIP :
I've DNS entries poiting the 3.100 and 4.100 to my nginx reverse-proxy which then redirect the 3.100 to pve.local.ndd and 4.100 to linstor.local.ndd so that I can access both the cluster and the lisntor-gui on what-ever node it is running on.
Monitoring via prometheus :
If you ever want to do some dashboards via grafana and prometheus, on all nodes:
cat << EOF > /etc/drbd-reactor.d/prometheus.toml
[[prometheus]]
enums = true
address = "0.0.0.0:9942"
EOF
systemctl restart drbd-reactor.serviceBenchmarks :

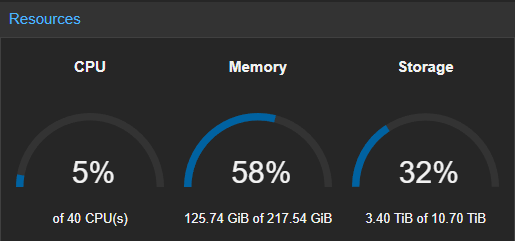

Now that everything is done, joined, clustered and linstored, let's see what we have there :
Each node having a ZFS pool created with default options, it should be on standard.
interlope@pivoine:~$ zfs get sync pool-nvme-01
NAME PROPERTY VALUE SOURCE
pool-nvme-01 sync standard localThere's 3 possibles values :
standard= sync if possible, async otherwisealways= syncdisabled= async
Let's benchmark it on a VM to get some results :
- Benchmark with
standard:
root@guinea-pig:/mnt/fio# fio --name=sync-write --filename=/mnt/fio/testfile --size=1G --bs=4k \
--rw=write --iodepth=1 --direct=1 --sync=1 --runtime=60 --time_based --group_reporting
sync-write: (g=0): rw=write, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=psync, iodepth=1
fio-3.39
Starting 1 process
sync-write: Laying out IO file (1 file / 1024MiB)
Jobs: 1 (f=1): [W(1)][100.0%][w=604KiB/s][w=151 IOPS][eta 00m:00s]
sync-write: (groupid=0, jobs=1): err= 0: pid=2112: Fri Nov 14 20:20:26 2025
write: IOPS=137, BW=552KiB/s (565kB/s)(32.3MiB/60005msec); 0 zone resets
clat (msec): min=5, max=277, avg= 7.24, stdev= 3.55
lat (msec): min=5, max=277, avg= 7.24, stdev= 3.55
clat percentiles (msec):
| 1.00th=[ 6], 5.00th=[ 6], 10.00th=[ 6], 20.00th=[ 6],
| 30.00th=[ 7], 40.00th=[ 7], 50.00th=[ 7], 60.00th=[ 7],
| 70.00th=[ 8], 80.00th=[ 9], 90.00th=[ 10], 95.00th=[ 11],
| 99.00th=[ 16], 99.50th=[ 18], 99.90th=[ 23], 99.95th=[ 26],
| 99.99th=[ 279]
bw ( KiB/s): min= 192, max= 656, per=99.83%, avg=551.92, stdev=95.14, samples=119
iops : min= 48, max= 164, avg=137.97, stdev=23.78, samples=119
lat (msec) : 10=94.14%, 20=5.69%, 50=0.16%, 500=0.01%
cpu : usr=0.08%, sys=0.85%, ctx=16563, majf=0, minf=8
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=0,8280,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
WRITE: bw=552KiB/s (565kB/s), 552KiB/s-552KiB/s (565kB/s-565kB/s), io=32.3MiB (33.9MB), run=60005-60005msec
Disk stats (read/write):
dm-1: ios=3/50255, sectors=24/430144, merge=0/0, ticks=0/94740, in_queue=94740, util=97.46%, aggrios=3/33377, aggsectors=24/430816, aggrmerge=0/17008, aggrticks=1/63005, aggrin_queue=81082, aggrutil=97.32%
sda: ios=3/33377, sectors=24/430816, merge=0/17008, ticks=1/63005, in_queue=81082, util=97.32%root@guinea-pig:/mnt/fio# fio --name=async-write --filename=/mnt/fio/testfile --size=1G --bs=4k \
--rw=write --iodepth=16 --direct=1 --runtime=60 --time_based --group_reporting
async-write: (g=0): rw=write, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=psync, iodepth=16
fio-3.39
Starting 1 process
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
Jobs: 1 (f=1): [W(1)][100.0%][w=2242KiB/s][w=560 IOPS][eta 00m:00s]
async-write: (groupid=0, jobs=1): err= 0: pid=2115: Fri Nov 14 20:21:28 2025
write: IOPS=569, BW=2280KiB/s (2334kB/s)(134MiB/60002msec); 0 zone resets
clat (usec): min=603, max=16360, avg=1752.90, stdev=679.44
lat (usec): min=604, max=16360, avg=1753.14, stdev=679.43
clat percentiles (usec):
| 1.00th=[ 1156], 5.00th=[ 1188], 10.00th=[ 1205], 20.00th=[ 1237],
| 30.00th=[ 1270], 40.00th=[ 1303], 50.00th=[ 1401], 60.00th=[ 2114],
| 70.00th=[ 2180], 80.00th=[ 2212], 90.00th=[ 2311], 95.00th=[ 2442],
| 99.00th=[ 3589], 99.50th=[ 4146], 99.90th=[ 8717], 99.95th=[11731],
| 99.99th=[15664]
bw ( KiB/s): min= 1632, max= 2664, per=100.00%, avg=2281.08, stdev=181.23, samples=119
iops : min= 408, max= 666, avg=570.27, stdev=45.31, samples=119
lat (usec) : 750=0.01%, 1000=0.02%
lat (msec) : 2=55.05%, 4=44.28%, 10=0.57%, 20=0.07%
cpu : usr=0.27%, sys=1.97%, ctx=34203, majf=0, minf=8
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=0,34195,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
WRITE: bw=2280KiB/s (2334kB/s), 2280KiB/s-2280KiB/s (2334kB/s-2334kB/s), io=134MiB (140MB), run=60002-60002msec
Disk stats (read/write):
dm-1: ios=3/34301, sectors=24/274320, merge=0/0, ticks=0/58832, in_queue=58832, util=97.84%, aggrios=3/34256, aggsectors=24/274800, aggrmerge=0/105, aggrticks=0/59357, aggrin_queue=59414, aggrutil=97.70%
sda: ios=3/34256, sectors=24/274800, merge=0/105, ticks=0/59357, in_queue=59414, util=97.70%- Benchmark with
disabled:
root@guinea-pig:/mnt/fio# fio --name=sync-write --filename=/mnt/fio/testfile --size=1G --bs=4k --rw=write --iodepth=1 --direct=1 --sync=1 --runtime=60 --time_based --group_reporting
sync-write: (g=0): rw=write, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=psync, iodepth=1
fio-3.39
Starting 1 process
Jobs: 1 (f=1): [W(1)][100.0%][w=4580KiB/s][w=1145 IOPS][eta 00m:00s]
sync-write: (groupid=0, jobs=1): err= 0: pid=2129: Fri Nov 14 20:24:56 2025
write: IOPS=1527, BW=6112KiB/s (6259kB/s)(358MiB/60001msec); 0 zone resets
clat (usec): min=131, max=9992, avg=653.09, stdev=344.29
lat (usec): min=132, max=9992, avg=653.29, stdev=344.30
clat percentiles (usec):
| 1.00th=[ 182], 5.00th=[ 210], 10.00th=[ 237], 20.00th=[ 285],
| 30.00th=[ 359], 40.00th=[ 660], 50.00th=[ 725], 60.00th=[ 783],
| 70.00th=[ 832], 80.00th=[ 889], 90.00th=[ 979], 95.00th=[ 1045],
| 99.00th=[ 1369], 99.50th=[ 1942], 99.90th=[ 3130], 99.95th=[ 4228],
| 99.99th=[ 8455]
bw ( KiB/s): min= 4128, max=12736, per=100.00%, avg=6129.87, stdev=2924.21, samples=119
iops : min= 1032, max= 3184, avg=1532.46, stdev=731.06, samples=119
lat (usec) : 250=13.32%, 500=20.58%, 750=20.45%, 1000=37.72%
lat (msec) : 2=7.46%, 4=0.40%, 10=0.06%
cpu : usr=0.66%, sys=5.32%, ctx=211682, majf=0, minf=9
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=0,91681,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=1
Run status group 0 (all jobs):
WRITE: bw=6112KiB/s (6259kB/s), 6112KiB/s-6112KiB/s (6259kB/s-6259kB/s), io=358MiB (376MB), run=60001-60001msec
Disk stats (read/write):
dm-1: ios=0/421324, sectors=0/2637864, merge=0/0, ticks=0/81948, in_queue=81948, util=88.37%, aggrios=0/304112, aggsectors=0/2642352, aggrmerge=0/117885, aggrticks=0/54648, aggrin_queue=58947, aggrutil=87.88%
sda: ios=0/304112, sectors=0/2642352, merge=0/117885, ticks=0/54648, in_queue=58947, util=87.88%root@guinea-pig:/mnt/fio# fio --name=async-write --filename=/mnt/fio/testfile --size=1G --bs=4k \
--rw=write --iodepth=16 --direct=1 --runtime=60 --time_based --group_reporting
async-write: (g=0): rw=write, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=psync, iodepth=16
fio-3.39
Starting 1 process
note: both iodepth >= 1 and synchronous I/O engine are selected, queue depth will be capped at 1
Jobs: 1 (f=1): [W(1)][100.0%][w=16.5MiB/s][w=4230 IOPS][eta 00m:00s]
async-write: (groupid=0, jobs=1): err= 0: pid=2132: Fri Nov 14 20:25:58 2025
write: IOPS=4169, BW=16.3MiB/s (17.1MB/s)(977MiB/60001msec); 0 zone resets
clat (usec): min=95, max=11141, avg=238.70, stdev=128.18
lat (usec): min=95, max=11142, avg=238.87, stdev=128.19
clat percentiles (usec):
| 1.00th=[ 135], 5.00th=[ 155], 10.00th=[ 174], 20.00th=[ 186],
| 30.00th=[ 196], 40.00th=[ 206], 50.00th=[ 225], 60.00th=[ 241],
| 70.00th=[ 255], 80.00th=[ 277], 90.00th=[ 310], 95.00th=[ 347],
| 99.00th=[ 474], 99.50th=[ 693], 99.90th=[ 1762], 99.95th=[ 2245],
| 99.99th=[ 4883]
bw ( KiB/s): min=14352, max=18576, per=100.00%, avg=16689.14, stdev=751.16, samples=119
iops : min= 3588, max= 4644, avg=4172.29, stdev=187.79, samples=119
lat (usec) : 100=0.01%, 250=66.85%, 500=32.25%, 750=0.46%, 1000=0.14%
lat (msec) : 2=0.23%, 4=0.06%, 10=0.02%, 20=0.01%
cpu : usr=1.02%, sys=9.82%, ctx=250210, majf=0, minf=11
IO depths : 1=100.0%, 2=0.0%, 4=0.0%, 8=0.0%, 16=0.0%, 32=0.0%, >=64=0.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
issued rwts: total=0,250199,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=16
Run status group 0 (all jobs):
WRITE: bw=16.3MiB/s (17.1MB/s), 16.3MiB/s-16.3MiB/s (17.1MB/s-17.1MB/s), io=977MiB (1025MB), run=60001-60001msec
Disk stats (read/write):
dm-1: ios=0/249989, sectors=0/1999824, merge=0/0, ticks=0/54784, in_queue=54784, util=91.31%, aggrios=0/250291, aggsectors=0/2003080, aggrmerge=0/105, aggrticks=0/56227, aggrin_queue=56228, aggrutil=91.21%
sda: ios=0/250291, sectors=0/2003080, merge=0/105, ticks=0/56227, in_queue=56228, util=91.21%Those speeds are kinda slow, I'm not gonna lie to you. However, it can be explained because of a few factors : Linstor Sync, ZFS Sync + VM overhead. But it works like a charm, i've no issues with speed at all nor needs.
- Network benchmark :
pve01 to pve03 :
root@pivoine:/home/interlope# iperf3 -c 10.100.3.103
Connecting to host 10.100.3.103, port 5201
[ 5] local 10.100.3.101 port 54678 connected to 10.100.3.103 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 1.09 GBytes 9.38 Gbits/sec 33 1.21 MBytes
[ 5] 1.00-2.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.22 MBytes
[ 5] 2.00-3.00 sec 1.09 GBytes 9.37 Gbits/sec 0 1.22 MBytes
[ 5] 3.00-4.00 sec 1.09 GBytes 9.37 Gbits/sec 0 1.23 MBytes
[ 5] 4.00-5.00 sec 1.09 GBytes 9.38 Gbits/sec 1 1.23 MBytes
[ 5] 5.00-6.00 sec 1.09 GBytes 9.37 Gbits/sec 0 1.23 MBytes
[ 5] 6.00-7.00 sec 1.09 GBytes 9.37 Gbits/sec 0 1.24 MBytes
[ 5] 7.00-8.00 sec 1.09 GBytes 9.37 Gbits/sec 0 1.24 MBytes
[ 5] 8.00-9.00 sec 1.09 GBytes 9.36 Gbits/sec 0 1.27 MBytes
[ 5] 9.00-10.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.29 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 10.9 GBytes 9.37 Gbits/sec 34 sender
[ 5] 0.00-10.00 sec 10.9 GBytes 9.37 Gbits/sec receiver
iperf Done.pve02 to pve01 :
root@petunia:/home/interlope# iperf3 -c 10.100.3.101
Connecting to host 10.100.3.101, port 5201
[ 5] local 10.100.3.102 port 54198 connected to 10.100.3.101 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.89 MBytes
[ 5] 1.00-2.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.89 MBytes
[ 5] 2.00-3.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.89 MBytes
[ 5] 3.00-4.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.89 MBytes
[ 5] 4.00-5.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.98 MBytes
[ 5] 5.00-6.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.98 MBytes
[ 5] 6.00-7.00 sec 1.09 GBytes 9.40 Gbits/sec 0 1.98 MBytes
[ 5] 7.00-8.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.98 MBytes
[ 5] 8.00-9.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.98 MBytes
[ 5] 9.00-10.00 sec 1.09 GBytes 9.40 Gbits/sec 0 1.98 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 10.9 GBytes 9.39 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 10.9 GBytes 9.39 Gbits/sec receiver
iperf Done.pve02 to pve03 :
root@petunia:/home/interlope# iperf3 -c 10.100.3.103
Connecting to host 10.100.3.103, port 5201
[ 5] local 10.100.3.102 port 49102 connected to 10.100.3.103 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 1.07 GBytes 9.17 Gbits/sec 34 1.21 MBytes
[ 5] 1.00-2.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.31 MBytes
[ 5] 2.00-3.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.31 MBytes
[ 5] 3.00-4.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.31 MBytes
[ 5] 4.00-5.00 sec 1.09 GBytes 9.40 Gbits/sec 0 1.32 MBytes
[ 5] 5.00-6.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.32 MBytes
[ 5] 6.00-7.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.32 MBytes
[ 5] 7.00-8.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.32 MBytes
[ 5] 8.00-9.00 sec 1.09 GBytes 9.39 Gbits/sec 0 1.35 MBytes
[ 5] 9.00-10.00 sec 1.09 GBytes 9.38 Gbits/sec 0 1.35 MBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 10.9 GBytes 9.37 Gbits/sec 34 sender
[ 5] 0.00-10.00 sec 10.9 GBytes 9.36 Gbits/sec receiver
iperf Done.- Migration benchmark : I'll simply live migrate a VM from pve01 to pve03 with those specs : 34G disk and 12G ram.
task started by HA resource agent
2025-11-14 21:47:40 conntrack state migration not supported or disabled, active connections might get dropped
2025-11-14 21:47:40 use dedicated network address for sending migration traffic (10.100.3.103)
2025-11-14 21:47:40 starting migration of VM 20057 to node 'dalia' (10.100.3.103)
2025-11-14 21:47:40 starting VM 20057 on remote node 'dalia'
2025-11-14 21:47:41 start remote tunnel
2025-11-14 21:47:42 ssh tunnel ver 1
2025-11-14 21:47:42 starting online/live migration on unix:/run/qemu-server/20057.migrate
2025-11-14 21:47:42 set migration capabilities
2025-11-14 21:47:42 migration downtime limit: 100 ms
2025-11-14 21:47:42 migration cachesize: 2.0 GiB
2025-11-14 21:47:42 set migration parameters
2025-11-14 21:47:42 start migrate command to unix:/run/qemu-server/20057.migrate
2025-11-14 21:47:43 migration active, transferred 515.4 MiB of 12.6 GiB VM-state, 428.3 MiB/s
2025-11-14 21:47:44 migration active, transferred 1.1 GiB of 12.6 GiB VM-state, 1014.6 MiB/s
2025-11-14 21:47:45 migration active, transferred 2.0 GiB of 12.6 GiB VM-state, 1.1 GiB/s
2025-11-14 21:47:46 migration active, transferred 2.8 GiB of 12.6 GiB VM-state, 812.0 MiB/s
2025-11-14 21:47:47 migration active, transferred 3.3 GiB of 12.6 GiB VM-state, 823.0 MiB/s
2025-11-14 21:47:48 migration active, transferred 3.9 GiB of 12.6 GiB VM-state, 669.9 MiB/s
2025-11-14 21:47:49 migration active, transferred 4.5 GiB of 12.6 GiB VM-state, 564.6 MiB/s
2025-11-14 21:47:50 migration active, transferred 5.0 GiB of 12.6 GiB VM-state, 507.2 MiB/s
2025-11-14 21:47:51 migration active, transferred 5.5 GiB of 12.6 GiB VM-state, 484.9 MiB/s
2025-11-14 21:47:52 migration active, transferred 6.0 GiB of 12.6 GiB VM-state, 727.3 MiB/s
2025-11-14 21:47:53 migration active, transferred 6.9 GiB of 12.6 GiB VM-state, 949.1 MiB/s
2025-11-14 21:47:54 migration active, transferred 7.8 GiB of 12.6 GiB VM-state, 1.0 GiB/s
2025-11-14 21:47:55 migration active, transferred 8.8 GiB of 12.6 GiB VM-state, 1.0 GiB/s
2025-11-14 21:47:56 migration active, transferred 9.7 GiB of 12.6 GiB VM-state, 966.1 MiB/s
2025-11-14 21:47:57 migration active, transferred 10.6 GiB of 12.6 GiB VM-state, 1.0 GiB/s
2025-11-14 21:47:58 average migration speed: 806.6 MiB/s - downtime 59 ms
2025-11-14 21:47:58 migration completed, transferred 11.7 GiB VM-state
2025-11-14 21:47:58 migration status: completed
NOTICE
Intentionally removing diskless assignment (pm-299b3873) on (pivoine).
It will be re-created when the resource is actually used on this node.
2025-11-14 21:48:00 migration finished successfully (duration 00:00:20)
TASK OKThe VM is migrated in about 20 seconds with 59 freaking millisecond downtime. And since it's a live migration, there's absolutely no down time. The ping still goes on, and I'm still ssh'd in. This is wonderful. ( 1.0 GiB/s = roughly 8.59Gbps)
Conclusion :
To end this article/tutorial, i'll simply say that it works. It migrate quickly, i have no IO delay. It may not be the best setup nor the most money/performance ratio I could get, but I like it. That's what a production-ready homelab is : having fun trying things.
Thanks for reading me,
spleenftw
